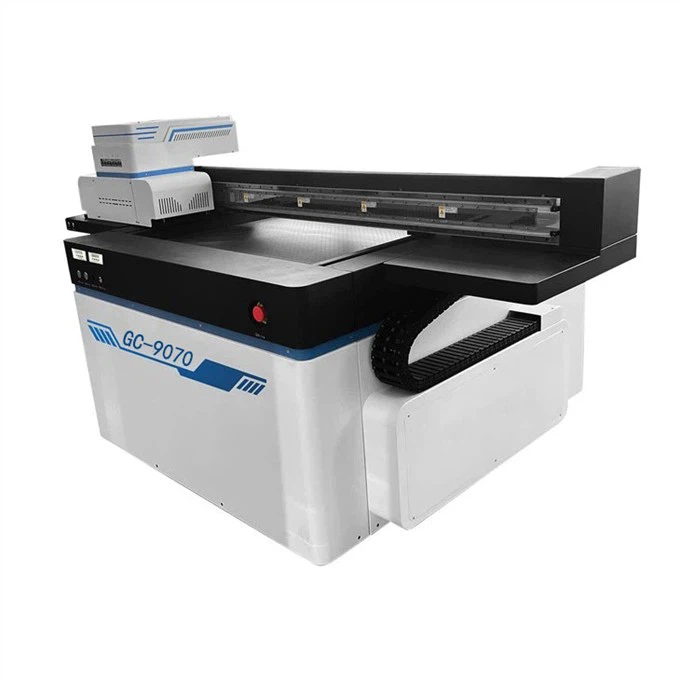

UV Flatbed Printer for Wood
It is easy to operate this printer,just like the general printer，we have a computer connecting to the machine ，in the computer，we will install the print software.you can use the software to control the UV printer.once you know how to operate the printer,you will know more than the phone case printing.like printing on wooden board、toys、metal stuff and so on.
UV printer has another name-digital printer,that refers to the printer can be controlled digitally.different from the traditional printing,people have to make plate or mold for the printing,but making the plate often take a long time and complicated,so it is not cost-efficient.now people have the digital printer,it is way more convenient.and it is still new now，a lot people still adopt the traditional way to print，therefore，there is huge increasing market with the UV printer to replace the old printing.
Specification
|
Items |
Description |
|
Printer Model |
GC-9070 |
|
Print Applications |
Print on glass、metel、acrylic、wooden、aluminum、leather materials. |
|
Printable size （length ×width） |
900mm×700mm（35.4''—27.5"） |
|
Printhead model |
Ricoh industrial G5i |
|
Printable thickness |
0—350mm |
|
Print Resolution |
600×1200 dpi or other resolution （optional） |
|
Printhead Quantity |
1-4pcs |
|
Print Configuration |
White+color(2heads) |
|
White+color+varnish(3heads) |
|
|
White+White+color+varnish（4heads） |
|
|
Primer+White+color+varnish（4heads） |
|
|
Print Speed |
2-6m2/h |
|
Ink Type |
Invironment-friendly UV Ink |
|
Curing Type |
UV light instant curing（Water cooling lamp） |
|
Power Requirement |
50/60Hz AC220/110±>10A |
|
Environment Temperature |
20℃ - 30℃ |
|
Environment Humidity |
40% - 65% |
|
Environment Cleanliness |
Similar to office environment |
|
Dimensions(L×W×H) |
2040mm (L) ×1360mm(W) ×1300mm (H) |
|
Weight |
300kg |
FAQ
1. How long it will take if I order a printer?
Generally，we can ship your printer within 15 days，and if you have the customized demand，please contact our sales，and check the lead time again.For example，if you have may cups or bottles，but it is not convenient for you to make these matched jigs，we need you to send them to us，or at least give us their sizes，then we can make these jigs while producing the printer.
2. How many kinds of inks do you need in the kind of printer.
In general,we use the white ink,black ink,cyan ink，magenta ink，yellow ink and varnish ink，for some special application，we can add the corresponding light ink to make the color finer and more vivid as well.and we have the IT ink made in south Koran，and the ink made in China，the majority customers of us use the Chinese ink，that can almost meet all their requirements.
