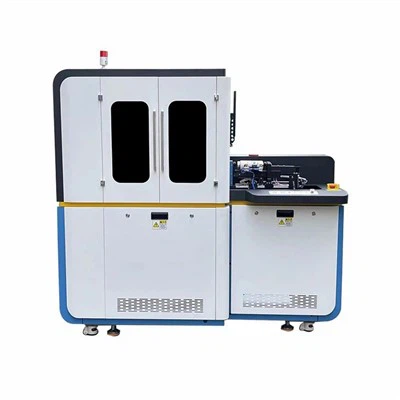

Steel Tumbler Printer
This machine is wonderful if you have the short-run need,there is no need to make the plate or do a lot of jobs before your production,you can just load the artwork,and then print.what you see on your screen will be like on your cup.you can use it in the zoom,museum, shopping mall,exhibition,the basketball or football match scene.then print souvenir for visitors.
1. Stunning varnish effect.we can be confidently say that the varnish effect printed by our is the best in this industry.because we have developed the exclusive and unique intelligent UV lamp control device,you can control every small lamp separately. You can set the UV light parameters based on your need.you set the UV light intensity degree,the curing time,the interval curing time,and the beginning place of curing precisely and easily,but the average UV lamp adopted by other manufacturer in this industry can just set one of these parameters.
We adopted the negative pressure control system to control and balance the ink flow,due to the existence of gravity,so the ink will drop down automatically,if we do not have a device to control it,we can ensure the print process and the print effect,the negative pressure control system successfully fix this problem.there is a negative pressure tank,a negative pressure generating device,that suck the inks in the heads through the ink tube.the ink tube connected to ink connect to filter,then ink sub-tank ,then safety bottle,then a air tube connect the safety bottle with the negative pressure tank.in the tank,we often have two sets of air tubes,one set is for the colors ink,another set for the white ink and varnish ink,what's more,the tank has upgrade to have the positive pressure function too,this is useful when we want to flush the head or discharge the ink,we just need to press the purge button,the negative pressure will change to positive pressure to press the air and ink.
Specification
|
Items |
Description |
|
Printer Model |
GC-360 |
|
Print Applications |
360 degree print on cups,bottles,tumblers,tapers,cylindrical objects |
|
Printable Length |
10mm-265mm(0.4''-10.5") |
|
Printable Diameter |
40mm-115mm(1.5''-4.5'') |
|
Printable Taper Angle |
0-7degree |
|
Print Resolution |
960×900 dpi or other resolution (optional) |
|
Printhead Quantity |
1-4pcs |
|
Print Configuration |
White+color(2heads) |
|
Print Speed |
Fast to 15 s/ pcs |
|
Ink Type |
Invironment-friendly UV Ink |
|
Curing Type |
UV light instant curing(Water cooling lamp) |
|
Power Requirement |
50/60Hz AC220/110±>10A |
|
Environment Temperature |
20℃ - 30℃ |
|
Environment Humidity |
40% - 65% |
|
Environment Cleanliness |
Similar to office environment |
|
Dimensions(L×W×H) |
1812×660×1820mm |
|
Weight |
300kg |
FAQ
1. How will ship your machine to my factory?
It is often depends on you,generally,you may have your own freight forwarder who can pick up and transport your goods for you;if you do not have your own forwarder or you just want us to handle all the shipping process,we can let our freight forwarder to handle as well.
2. Is there anything i need to order except for the printer?
We suggest you buy enough inks you probably need,because the inks is heavy and need more space,so its delivery fee will hire,you can the ink quantity almost you can use in 3 months.and also some spare parts.
