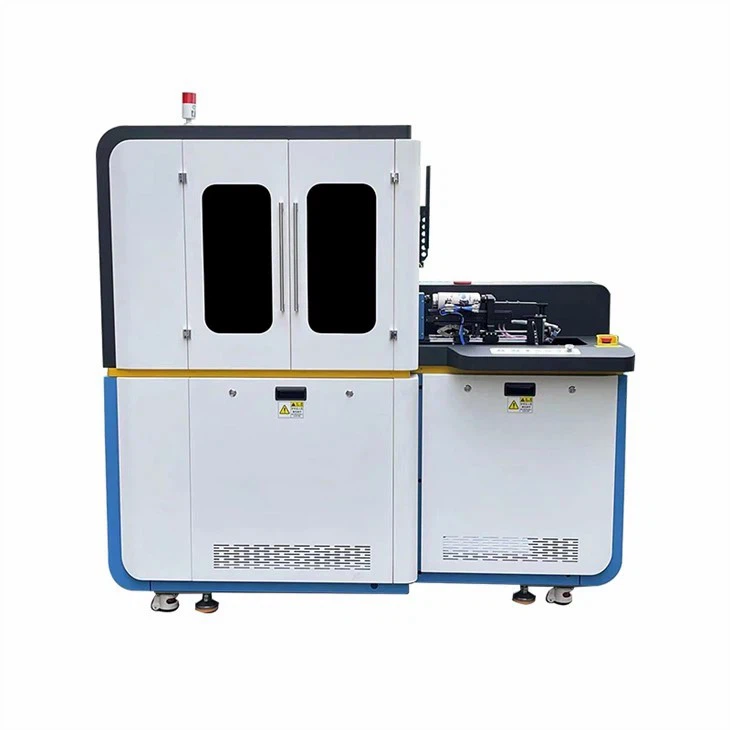

Aluminium Bottle Printing Machine
With time goes by,the flatbed printer technician realized that this inkjet technology can be adopted to cylindrical objects printing.after going the long time R&D,nowadays,the printer can print on cups.including the plastic cups,glass cups,metal cups,steel cups,ceramic cups,wooden cups,paper cups,disposable cups,water cups,milk cups,tea cups,coffee cups.even though they are tapered cups.
You can see beside the brackets,there is a couple of photoelectric sensor,actually,we call it material existing sensor,the printer uses this sensor to detect that has the operator loaded a cup or product in the fixture.if the sensor cannot detect that,it won't print for protecting the print heads from being exposed to the UV light,blocking.the UV light exposure can block the print heads immediately,so that we have to check the UV lamp covering status before,and make sure the UV lamp covering and setting is OK.and if something shield the material existing sensor,it will wrongly recognize that the cup is there, though you do not load a cup there.so usually to clean the sensor is necessary.
Before purchasing a product,especially a machine,you must concern the after-sales service,how can I prepare my plant,how should I install my machine,can I get it work for me well,and if there is any problem ,what I can do.here is how can we ensure you can use your machine,firstly,we will give you the best advice based on your product,and will tell you what you need to prepare,actually, you do not need to do anything before receiving the printer,and we have made the operation training manual and the corresponding videos too,you can get to know the machine more,once you receive the machine,we will arrange professional engineer to instruct you for the whole printing process and operation details.after that,when you are using the machine,and forget or have question,we can help through all kinds of social media.one word,we will ensure your experience.
Specification
|
Items |
Description |
|
Printer Model |
GC-360 |
|
Print Applications |
360 degree print on cups,bottles,tumblers,tapers,cylindrical objects |
|
Printable Length |
10mm-265mm(0.4''-10.5") |
|
Printable Diameter |
40mm-115mm(1.5''-4.5'') |
|
Printable Taper Angle |
0-7degree |
|
Print Resolution |
960×900 dpi or other resolution (optional) |
|
Printhead Quantity |
1-4pcs |
|
Print Configuration |
White+color(2heads) |
|
Print Speed |
Fast to 15 s/ pcs |
|
Ink Type |
Invironment-friendly UV Ink |
|
Curing Type |
UV light instant curing(Water cooling lamp) |
|
Power Requirement |
50/60Hz AC220/110±>10A |
|
Environment Temperature |
20℃ - 30℃ |
|
Environment Humidity |
40% - 65% |
|
Environment Cleanliness |
Similar to office environment |
|
Dimensions(L×W×H) |
1812×660×1820mm |
|
Weight |
300kg |
FAQ
1. Do I need to surface treatment for some special materails?
Yes,you do ,but for most materials will be compatible to our current ink,if it's still not good,we can consider use the primer(we have tested a lot),the plasma,the flame treatment,drying and so on,further,we have developed the printable primer,so it can be sprayed the same way with the ink.
2. How long it will take to print a cup or bottle?
Generally,it will take 10 to 45 seconds per cup,it depends on the artwork size,and your print mode,like whether you print white,color and varnish,or just print varnish,and the feather mode,we have the small,middle and stong feather mode,and your print speed setting,you can select the slow,middle and high speed too.
